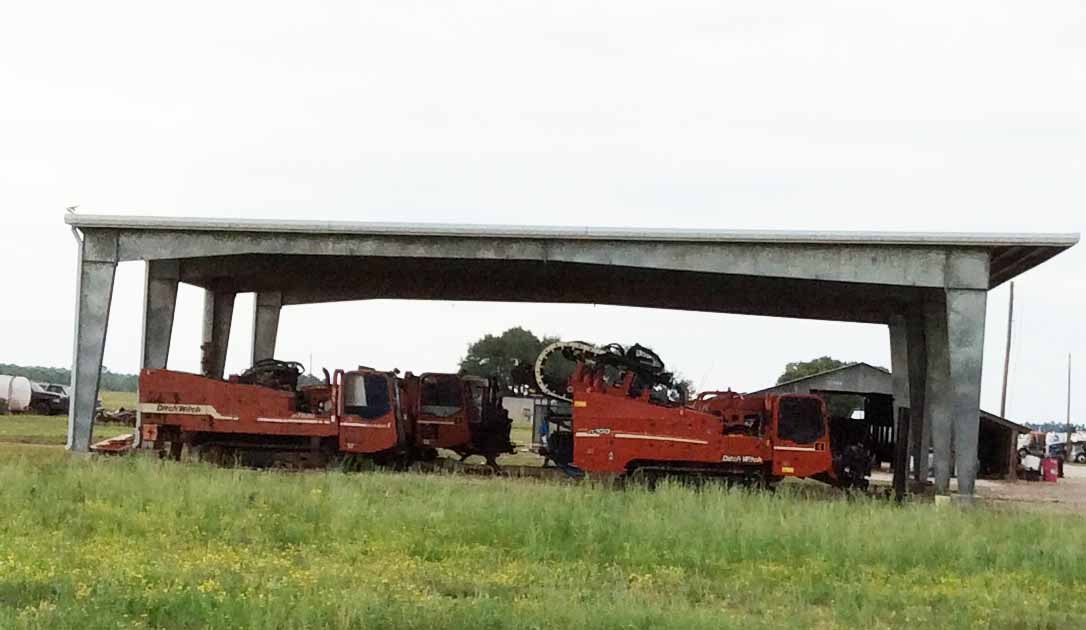

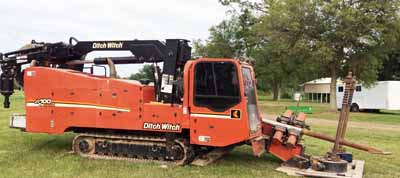

• Ditch Witch 7020:

    • One small size-drilling rig capable of using drill stems fifteen feet long by three inches in diameter. The maximum pipe-handling diameter is 24 inches and up to 1,500 feet in length. It can utilize 10,000 foot pounds of torque and 70,000 foot pounds of push pull force.

  • Ditch Witch 8020:

    • One small size-drilling rig capable of using drill stems fifteen feet long by three inches in diameter. The maximum pipe-handling diameter is 24 inches and up to 1,500 feet in length. It can utilize 10,000 foot pounds of torque and 80,000 foot pounds of push pull force.

  • American Auger 140:

    • One medium size-drilling rig capable of using drill stem that is thirty feet long by five inches in diameter. The maximum pipe-handling diameter is 30 inches and up to 1,500 feet in length. It can utilize 25,000 foot pounds of torque and 140,000 foot pounds of push pull force.

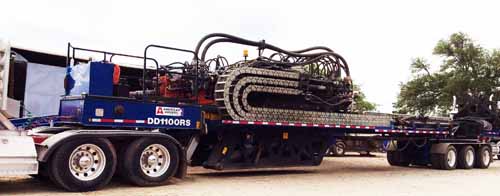

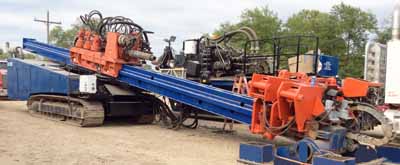

  • American Auger 220 (Modified):

    • One large size-drilling rig capable of using drill stem that is thirty feet long by five inches in diameter. The maximum pipe-handling diameter is 48 inches and up to 4,000 feet. It can utilize 52,000 foot pounds of torque and 660,000 foot pounds of push pull force.

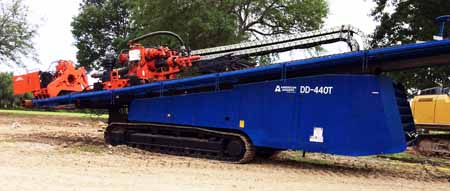

  • American Auger 440A&B:

    • Two large size-drilling rigs capable of using drill stem that is thirty feet long by five inches in diameter. The maximum pipe-handling diameter is 48 inches and up to 3,000 feet in length. It can utilize 54,000 foot pounds of torque and 440,000 foot pounds of push pull force.

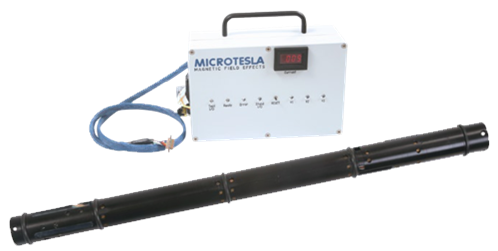

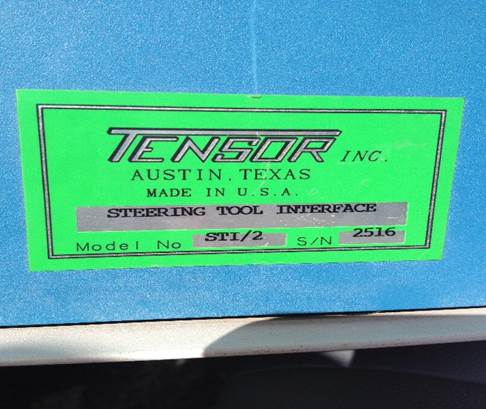

    All of the above drilling rigs come complete with Paratrack Steering Tools, state of the art computerized steering programs, computers and survey instruments.

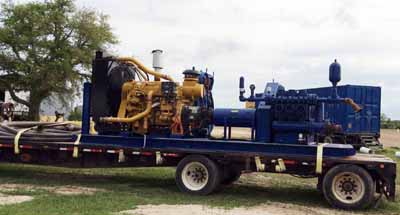

  • Mud Pumping Equipment:

    • Six mud pumps (three pumps:500 gallons per minute, two pumps: 250 gallons per minute & one backup pump: 400 gallons per minute) to support the drilling operations.

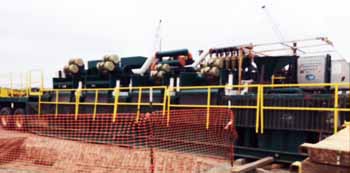

  • Mud Re-Circulating Equipment:

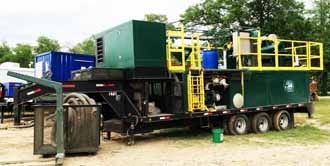

    • Four complete Mud Recovery Systems (three large: 500 gallons per minute & one small: 250 gallons per minute) consists of various capacity Mud Tanks and Pumps, De-Silters, De-Sanders, Shell Shakers and Generators.

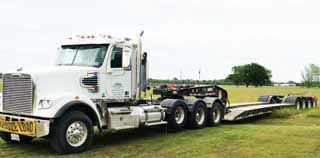

  • Heavy Equipment:

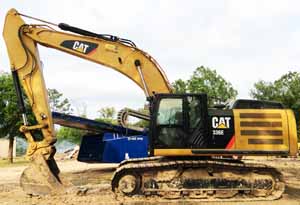

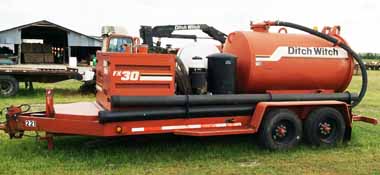

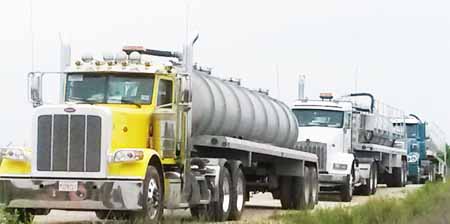

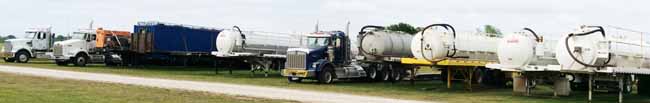

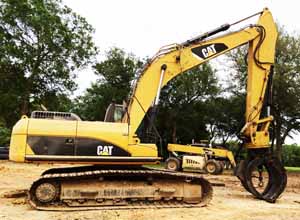

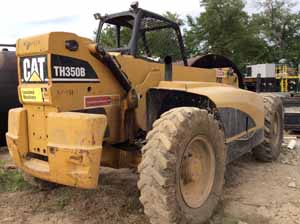

    • Two Caterpillar 324 and one Caterpillar 320 Track hoes, three 110 bbl Vacuum Trucks, various front end loaders and forklifts are available as needed to support the various drilling activities.

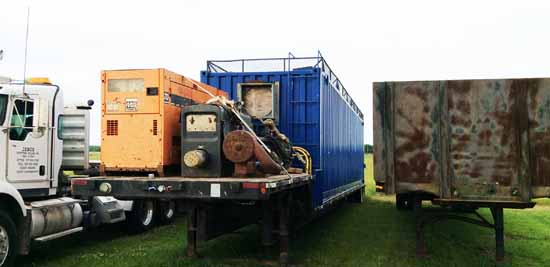

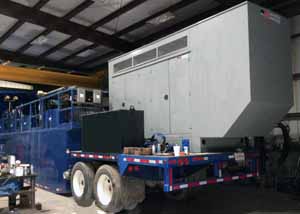

  • Powered Equipment:

    • A full complement of Caterpillar generators, centrifugal water and mud pumps are available to support the various drilling activities.

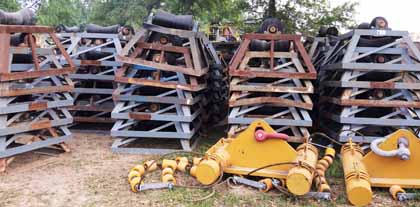

  • Roller Equipment:

    • A full complement of roller equipment is available as needed to support the drilling operations.

  • Survey Equipment:

    • Currently owns and operates the most powerful GPS system available to date. The Trimble R8 GNSS System is a multi-frequency GNSS (Global Navigation Satellite System) receiver, antenna and data-link radio combined in one compact unit. The Trimble R8 combines advanced receiver technology and a proven system design. In addition, we operate high end dual-axis compensated Nikon total stations, along with the latest field software to ensure maximum accuracy and productivity.

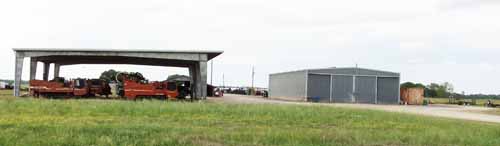

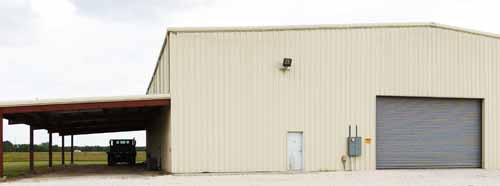

  • Shop:

    • Approximately 8,800 square feet of shop area with dual 10 ton overhead cranes available to support our drilling operations.
